還債系列
DynamoDB
DynamoDB 是 AWS 提供的 Managed NoSQL DBMS,取代之前的 SimpleDB;其設計概念為 Scalable (能應付極大量資料)、Available (HA Ready,跨 Region 當然還是要自己負責) 與 Fast (回應延遲穩定,數毫秒)。
為了達成這些目標,它拋棄了 SimpleDB Index Everything 的概念,而往 Key-Value Store 靠攏;並透過 LSI 與晚些公開的 GSI,給予開發者更多彈性。又因為它是 NoSQL,因此 Transaction 退化成了 Atomic Document 操作,且不支援 Join 操作;RDBMS 的用戶可能要重新適應學習,因為表格設計、查詢效能、以及性能調校都截然不同。
資料儲存與 Primary Key
雖說許多 NoSQL DBMS 以類似 JSON 的方式儲存資料,但 DynamoDB 特別聲明它使用自訂儲存格式,僅將 JSON 作為輸入輸出格式。即便如此,屬性名會保存在文件中,並佔用儲存空間,因此應使用短且有意義的名稱,對操作性能(與價格)有幫助。
DynamoDB 的屬性可包含六種型態,分別為 String、Number、Binary (以 Base64 表示)、String Set、Number Set、與 Binary Set。不支援 Sub-document 的限制可以靠自行 JSON encode / decode 後以 String 儲存來避過。要特別注意 DynamoDB 接受 set 而非 array,因此值不能重複。
在建立 DynamoDB 表格時,必須給定所需要的所有索引(包含 Primary Key, LSI 與 GSI),並且之後無法修改。除了被索引的欄位以外,屬性可以是任何型態,也可以被更新為任意型態;而被索引的欄位只能為 Scalar 型態,包含 String, Number 與 Binary。
DynamoDB 的 Primary Key 包含 Hash Key 與選擇性的的 Range Key;前者被用於 shard 資料,後者則用於取得並排序資料。正如其他 DBMS,DynamoDB 的 Primary Key 保證唯一性 (Uniqueness);且 Hash Key 的 Cardinality 決定資料分配,選擇不當可能造成性能低落。
Index
Local Secondary Index (LSI)
正如 PK,LSI 是在 Hash Key 之外,允許指定另一組 Range Key;並且我們可以指定要 project 到哪些屬性,將它寫入 Index entry 中。為了能由 Index entry 取回原 Document,則 Hash Key (也作為 LSI 的 Hash Key,因此必然存在)與 PK:Range Key 必須被 Project。
在 DynamoDB 裡,要使用 Query API 對 Index 進行查詢;而對 LSI 查找時,因為 LSI 與 Document 在同一台機器上,因此若要求讀取未被 Project 的屬性,則 DynamoDB 會自動多執行一次讀取,以取回 Document。這會造成額外的 Read throughput 消耗與 latency,實務上要嚴格避免。
修改資料時,若該欄位屬於 PK 或被 Project,則該 Index Entry 也需要更新,因此要消耗額外的 Write throughput。因此要計算使用模式,以便對 Index 與 Projection 進行取捨。
LSI 不強迫一致性,因此可以有很多筆 Hash Key 與 Range Key 相同的資料。
Global Secondary Index (GSI)
這是比較晚近實做的功能,用戶可以指定想要的 Hash 與 Range Key,其原則與 PK 接近,可以想像為 DynamoDB 產生對應的 GSI table 及 item,並在背景維護。與 LSI 相同,GSI 不強迫 key uniqueness;而與 LSI 不同,GSI 不支援自動讀取 Document 以取得未 Project 之屬性,並且 GSI 有自己的 throughputs。
CRUD
DynamoDB 提供幾隻資料操作 API,分別為:
- 寫入:PutItem, UpdateItem
- 刪除:DeleteItem
- 讀取:Query, Scan
Create / Update
PutItem 與 UpdateItem 預設行為接近 Upsert,但其細節略有不同:
- PutItem 行為類似 RESTful POST;相同 PK 資料存在時,會覆蓋整個文件;
- UpdateItem 行為類似 RESTful PATCH;相同 PK 資料存在時,只覆蓋帶入的欄位;支援 Atomic Document Operation
使用 UpdateItem 時,可以指定欄位更新的 Action 屬性:
- PUT: 預設值, Upsert 該屬性的值;若 Document 不存在,則行為與 PutItem 相同。
- DELETE: 若不帶該屬性的新值,則移除該屬性;否則是集合的差集 (傳入的 Value 要是同型態的 set)
- ADD: 若欄位 (傳入值與舊有欄位) 為同型態的 set,則為聯集。若傳入值為數字,則是 atomic counter;若原屬性不存在,則預設為 0。
若 Document 不存在,Manual 寫說只有 Number 與 Number Set 能寫入文件;我未測試其正確性,但 String Set / Binary Set 應該要能比照辦理。
在調用 PutItem 與 UpdateItem 時,可以帶入 expected 參數,進行 Conditional Update,以實現 MVCC 與 atomic counter 等模式。舊 API 以 Value / Exists 兩組屬性進行稽核,但目前建議改以比較運算子搭配 AttributeValueList 判斷,添增處理彈性。

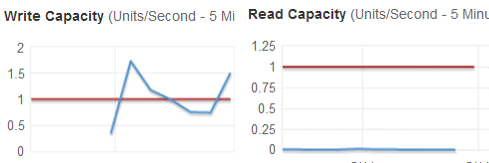

使用 Conditional Update 時,不消耗 Read Capacity;但依照 Manual 說明,即使 expected 條件不滿足(寫入失敗),很可能仍會消耗 1 write capacity。
Delete
與 Create / Update 類似,可以引入 expected 欄位進行 conditional delete;並至少消耗 1 write throughput。
Read
DynamoDB 提供兩隻 API (Query, Scan) 以讀取資料,又分為 Eventual Consistency 與 Strong Consistency 兩種形式;只有對 LSI 或 PK 的讀取能選擇 Strong Consistency,而 Eventual Consistency 對 Read Throughput 的消耗是 Strong Consistency 的一半。
每次查詢回傳資料上限為 1mb,超過則 DynamoDB 會回傳 LastEvaluatedKey,便於查詢接續;但因為不支援 Transaction,列舉可能會遺漏新增資料,在規劃流程時要特別注意。
Scan
Table Scan;若表格很大,會因為讀表過程對同一 Hash Key 連續存取,造成類似 poor cardinality 的結果。透過 parallel scan 可以改善這個問題,優化資源運用。
Query
透過 PK, LSI 或 GSI 讀取資料。Query PK 能直接取得 Document,以及其中任何欄位的值;若使用 GSI 或 LSI 查詢,並且只取回 projected attributes ,DynamoDB 只須讀取 Index,因此 Read Capacity 也能合併計算。
對於屬性與 Projection 的問題已在 Index 小節提過,不贅述。
Select / AttributesToGet
前者指示 DynamoDB 如何回傳,而後者則列舉要取回的屬性。Select 的候選值有:
- ALL_ATTRIBUTES:傳回所有屬性;若 LSI 未 Project 至所有屬性,則會自動讀取 Document
- ALL_PROJECTED_ATTRIBUTES:傳回所有 Projected 的屬性
- COUNT:傳回符合查詢的列數,關於 Throughput 用量我會再做測試並說明
- SPECIFIC_ATTRIBUTES:傳回 AttributesToGet 中列舉的屬性
又 Disk I/O 只與讀取的資料數量有關,因此大多情況下,調整 AttributesToGet 對 Read Throughput 幾無助益(例外:LSI & projected attributes)
Filter
對於未能以 Index 篩選的條件,可以寫成 Filter 由 DynamoDB 排除;有點像是 MySQL 中未能利用 Index 的 Where clause,終由 MySQL Engine 進行運算的場景。
雖說對 Read Throughput 沒有幫助,但善用 Filter 能壓低資料傳輸量,並減低 Scan / Query 因為單筆 1mb 限制,而要送出請求的次數(單位時間內耗用的 read throughput 可能反而增加)
Throughput
這應該是 DynamoDB 的一大賣點:架構得當的前提下,從 1 長到 10k qps,只需要改個數字;更高也只消寫封信,然後繼續改數字就好 🙂 但若設計不當,帳單多個幾倍也很正常。
Write Throughput
相對單純,每寫入 1 筆資料,1kb 就消耗 1 write unit。數值無條件進入,index 獨立計算,並且無法合併。因此寫入兩筆 100 bytes 的資料,沒有 LSI / GSI,將消耗 2 write units。
Read Throughput
Consistent Read 4kb 資料消耗 1 read unit,循序讀取(Scan, GSI, LSI with projected attributes)可合併計算,若使用 eventually consistent read 則消耗減半。因此若 scan 存有 6k 筆資料,每筆平均 40 bytes 的話,將消耗 30 read units (6k * 40 / 8k = 30, scan 只支援 eventually consistent read)。
Access Control with IAM
DynamoDB 對 IAM Policy 的支援較完備,能透過 Resource 指定用戶能夠讀取的表格、Index、甚至是 Document 與欄位內容。其中前兩者屬於基本範疇,透過 arn 完成;後兩者則屬於 DynamoDB 進階權限控制,需使用 IAM Policy Variable 搭配 Condition。
{ "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "dynamodb:GetItem", "dynamodb:BatchGetItem", "dynamodb:Query", "dynamodb:PutItem", "dynamodb:UpdateItem", "dynamodb:DeleteItem", "dynamodb:BatchWriteItem" ], "Resource": [ "arn:aws:dynamodb:*:*:table/GameScores" ], "Condition": { "ForAllValues:StringEquals": { "dynamodb:LeadingKeys": ["${www.amazon.com:user_id}"], "dynamodb:Attributes": [ "UserId","GameTitle","Wins","Losses", "TopScore","TopScoreDateTime" ] }, "StringEqualsIfExists": {"dynamodb:Select": "SPECIFIC_ATTRIBUTES"} } } ] }
這是來自官方文件的範例,其中
- #6-14: 限制用戶能呼叫的 API
- #15-17: API 對應的是 GameScores 表
- #20: 表格的 hash key 需等於 ${www.amazon.com:user_id} 這項 Policy Variable;當用戶以 Login with Amazon 登入時,這項變數的值會被替換為他的 Amazon ID (數字)
- #21-24, 26: 強迫 Select 為 SPECIFIC_ATTRIBUTES, 且只能存取特定欄位
看完這篇以後,相信對於 DynamoDB 會有基本的認識。透過之前簡單的測試,我懷疑 Select : Count 無須遍歷 Index Entries 便能取得;若是如此,它所消耗的 read capacity 近似常數,將非常適合用於統計人數票數。
沒意外的話,這週會把 Headless Poller 設計概要完成;至於有沒有時間對 DynamoDB 進行更多測試,就隨緣吧 😉
